65+ pages effective flange width of l beam 2.6mb. The effective width of the compression flange is based on L 0 the distance between points of zero bending moment. The effective flange width for a beam marked below and bh 25 cm 50 cm. First determining the effective flange width from Section 831 or ACI 8102 1 b span 4 2412 4 72 in 2 b 16h f b w 16311 59 in 3 b clear spacing between beams b w center to center spacing between beams 47 in The centerline T beam spacing controls in this case and b 47 inches. Read also width and learn more manual guide in effective flange width of l beam B w L12 b w 6t b l c 2.
Effective flange width b efffor a T and inverted L beams defined as. B f effective width of flange.
Flanged Beam Design Neutral Axis In Flange Civilvillage
| Title: Flanged Beam Design Neutral Axis In Flange Civilvillage |
| Format: PDF |
| Number of Pages: 171 pages Effective Flange Width Of L Beam |
| Publication Date: October 2018 |
| File Size: 1.4mb |
| Read Flanged Beam Design Neutral Axis In Flange Civilvillage |
 |
Location of the beam.
For Isolated L-beamslessor of- a bf 05lolob4 bw b bf b Wherebf effective width of flange bw breath of rib or web b actual width of flange lo distance between points of zero moment in abeam. In addition the LRFD effective flange width of exterior girder is dependent on the effective flange width of the adjacent interior. For the given monolithic T beam b_f b_w fracl_o6 6d_f 300 frac36006 6 times 100. For beams with a flange on one side of the web an inverted L-beam your effective width be of the t-beam yes its still called a t-beam should be taken as the minimum of. Code recommends that effective width of the flange of beams may be taken as follows- 1. For flanged beams the following values of L 0 are to be used.
Reinforced Concrete Design Chapter 9 Effective Flange Width Of T Beams And L Beams
| Title: Reinforced Concrete Design Chapter 9 Effective Flange Width Of T Beams And L Beams |
| Format: eBook |
| Number of Pages: 288 pages Effective Flange Width Of L Beam |
| Publication Date: August 2019 |
| File Size: 2.1mb |
| Read Reinforced Concrete Design Chapter 9 Effective Flange Width Of T Beams And L Beams |
|
T Beams And Terms Used In T Beams In Reinforced Cement Concrete
| Title: T Beams And Terms Used In T Beams In Reinforced Cement Concrete |
| Format: ePub Book |
| Number of Pages: 313 pages Effective Flange Width Of L Beam |
| Publication Date: July 2019 |
| File Size: 1.5mb |
| Read T Beams And Terms Used In T Beams In Reinforced Cement Concrete |
|
How To Calculate The Effective Flange Of Width Of Beams According To Ec2 Structville
| Title: How To Calculate The Effective Flange Of Width Of Beams According To Ec2 Structville |
| Format: PDF |
| Number of Pages: 289 pages Effective Flange Width Of L Beam |
| Publication Date: October 2017 |
| File Size: 800kb |
| Read How To Calculate The Effective Flange Of Width Of Beams According To Ec2 Structville |
|
Reinforced Concrete Design Chapter 9 Effective Flange Width Of T Beams And L Beams
| Title: Reinforced Concrete Design Chapter 9 Effective Flange Width Of T Beams And L Beams |
| Format: eBook |
| Number of Pages: 288 pages Effective Flange Width Of L Beam |
| Publication Date: December 2021 |
| File Size: 1.1mb |
| Read Reinforced Concrete Design Chapter 9 Effective Flange Width Of T Beams And L Beams |
|
Effective Width Of Flanges Em Ec2 A 5 3 2 1 Em
| Title: Effective Width Of Flanges Em Ec2 A 5 3 2 1 Em |
| Format: PDF |
| Number of Pages: 179 pages Effective Flange Width Of L Beam |
| Publication Date: May 2019 |
| File Size: 1.7mb |
| Read Effective Width Of Flanges Em Ec2 A 5 3 2 1 Em |
|
Design Of T Beam And L Beam
| Title: Design Of T Beam And L Beam |
| Format: PDF |
| Number of Pages: 149 pages Effective Flange Width Of L Beam |
| Publication Date: December 2021 |
| File Size: 810kb |
| Read Design Of T Beam And L Beam |
|
Effective Width Of Flange T Beam L Beam Is 456
| Title: Effective Width Of Flange T Beam L Beam Is 456 |
| Format: ePub Book |
| Number of Pages: 327 pages Effective Flange Width Of L Beam |
| Publication Date: October 2019 |
| File Size: 725kb |
| Read Effective Width Of Flange T Beam L Beam Is 456 |
|
Design Of T And L Beam In Flexure Construction How
| Title: Design Of T And L Beam In Flexure Construction How |
| Format: ePub Book |
| Number of Pages: 149 pages Effective Flange Width Of L Beam |
| Publication Date: August 2017 |
| File Size: 2.8mb |
| Read Design Of T And L Beam In Flexure Construction How |
|
Design The L Shaped Rc Beam Shown Below Which Is Chegg
| Title: Design The L Shaped Rc Beam Shown Below Which Is Chegg |
| Format: eBook |
| Number of Pages: 298 pages Effective Flange Width Of L Beam |
| Publication Date: September 2019 |
| File Size: 725kb |
| Read Design The L Shaped Rc Beam Shown Below Which Is Chegg |
|
Lec 8 Strength Design Method T Beams
| Title: Lec 8 Strength Design Method T Beams |
| Format: ePub Book |
| Number of Pages: 242 pages Effective Flange Width Of L Beam |
| Publication Date: December 2019 |
| File Size: 810kb |
| Read Lec 8 Strength Design Method T Beams |
|
Use Of Beam Flanges
| Title: Use Of Beam Flanges |
| Format: PDF |
| Number of Pages: 159 pages Effective Flange Width Of L Beam |
| Publication Date: July 2017 |
| File Size: 810kb |
| Read Use Of Beam Flanges |
|

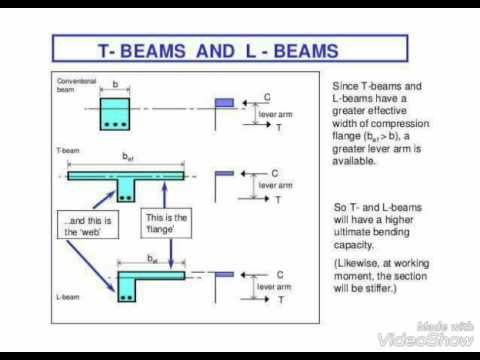

Questions have been raised as to. For a simply supported beam L 0 L. The effective width of flange mainly depends upon the span of beams thickness of slab and the breadth of the web.

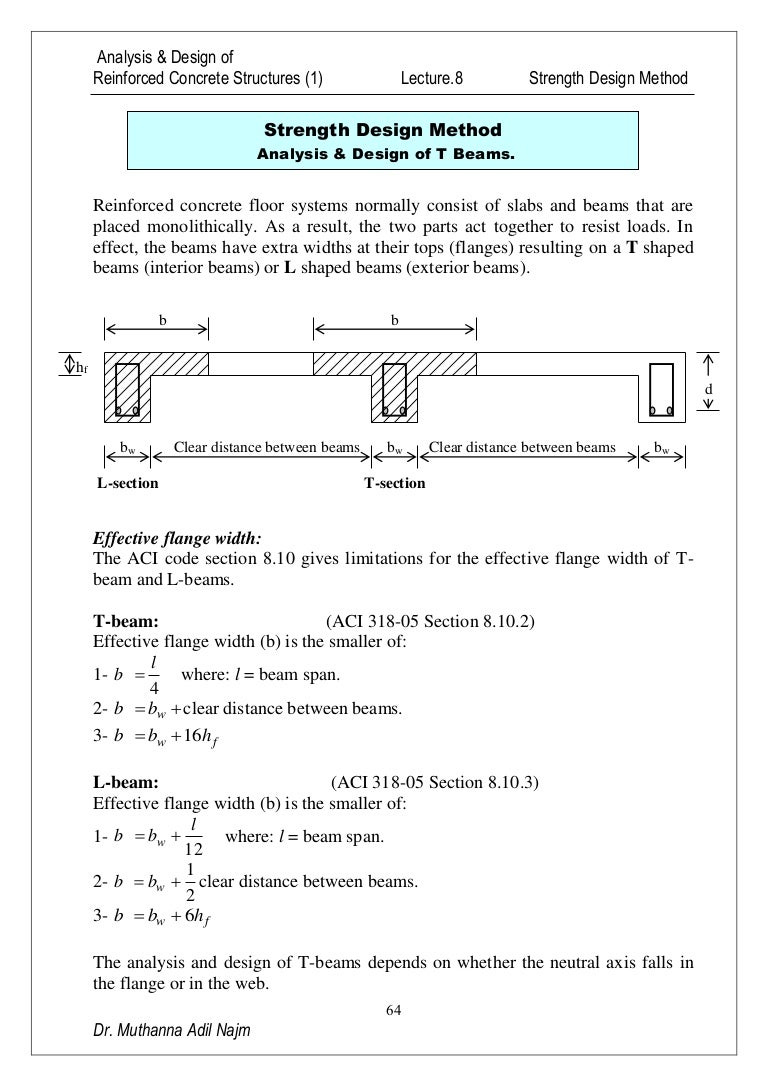

Here is all you have to to read about effective flange width of l beam For beams with a flange on one side of the web an inverted L-beam your effective width be of the t-beam yes its still called a t-beam should be taken as the minimum of. ACI Code Provisions for T and L Beams For T and L beams supporting monolithic or composite slabs the effective flange width bf shall include the beam web width bw plus an effective overhanging flange width in accordance with ACI Table 6321 Calculation of Effective Flange Width bf ACI 6321. For the given monolithic T beam b_f b_w fracl_o6 6d_f 300 frac36006 6 times 100. Design the l shaped rc beam shown below which is chegg effective width of flanges em ec2 a 5 3 2 1 em use of beam flanges lec 8 strength design method t beams design of t and l beam in flexure construction how t beams and terms used in t beams in reinforced cement concrete D f thickness of the flange.
